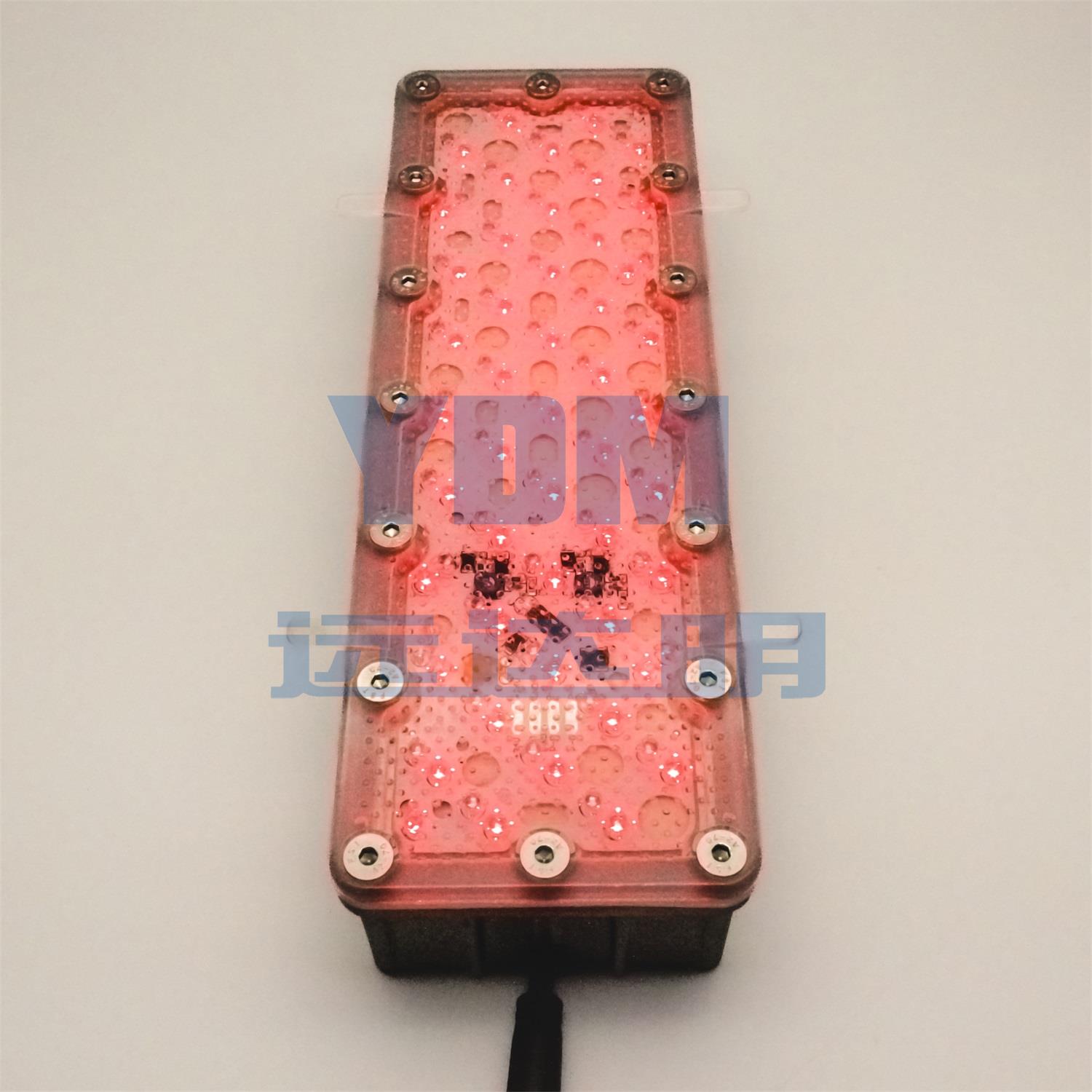

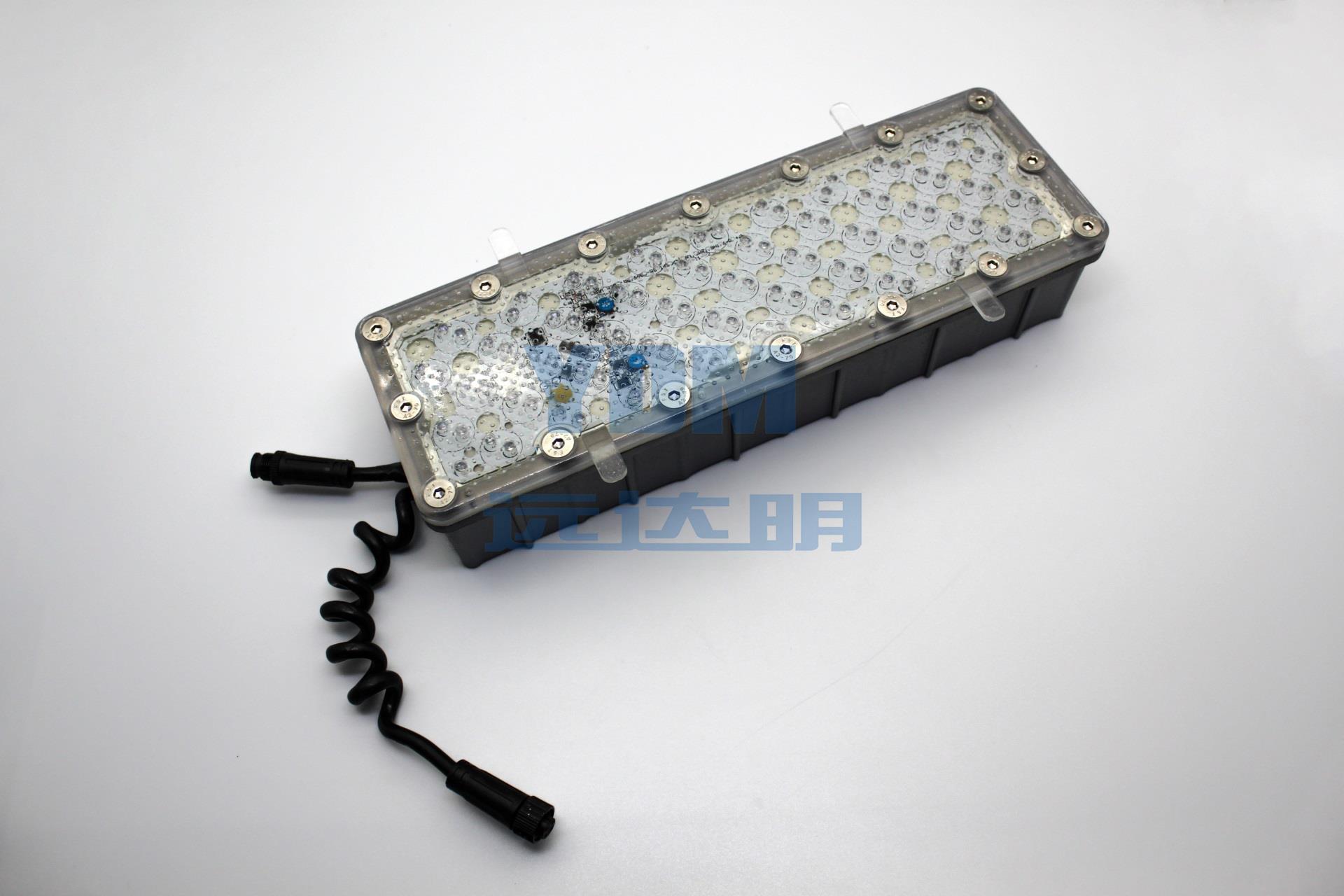

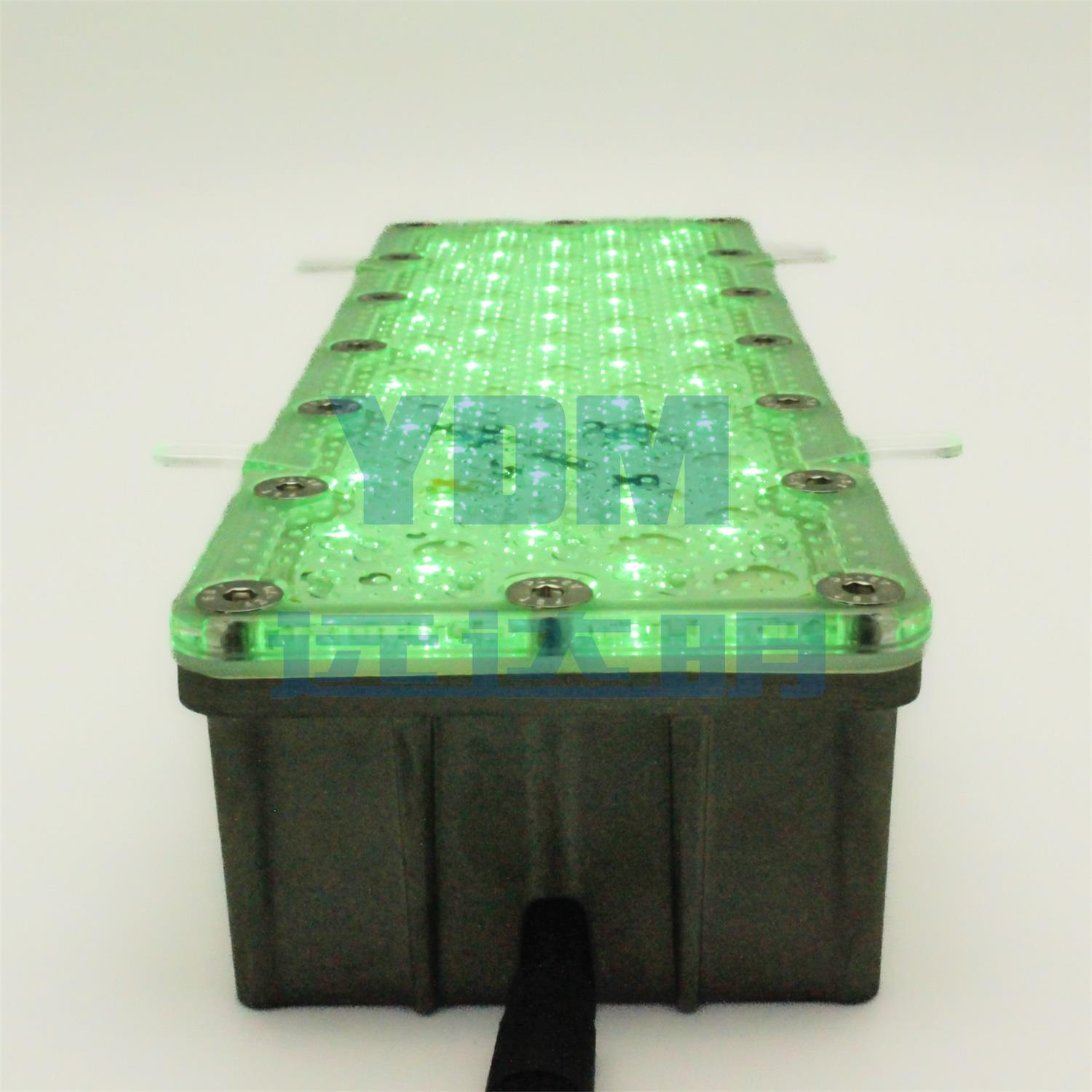

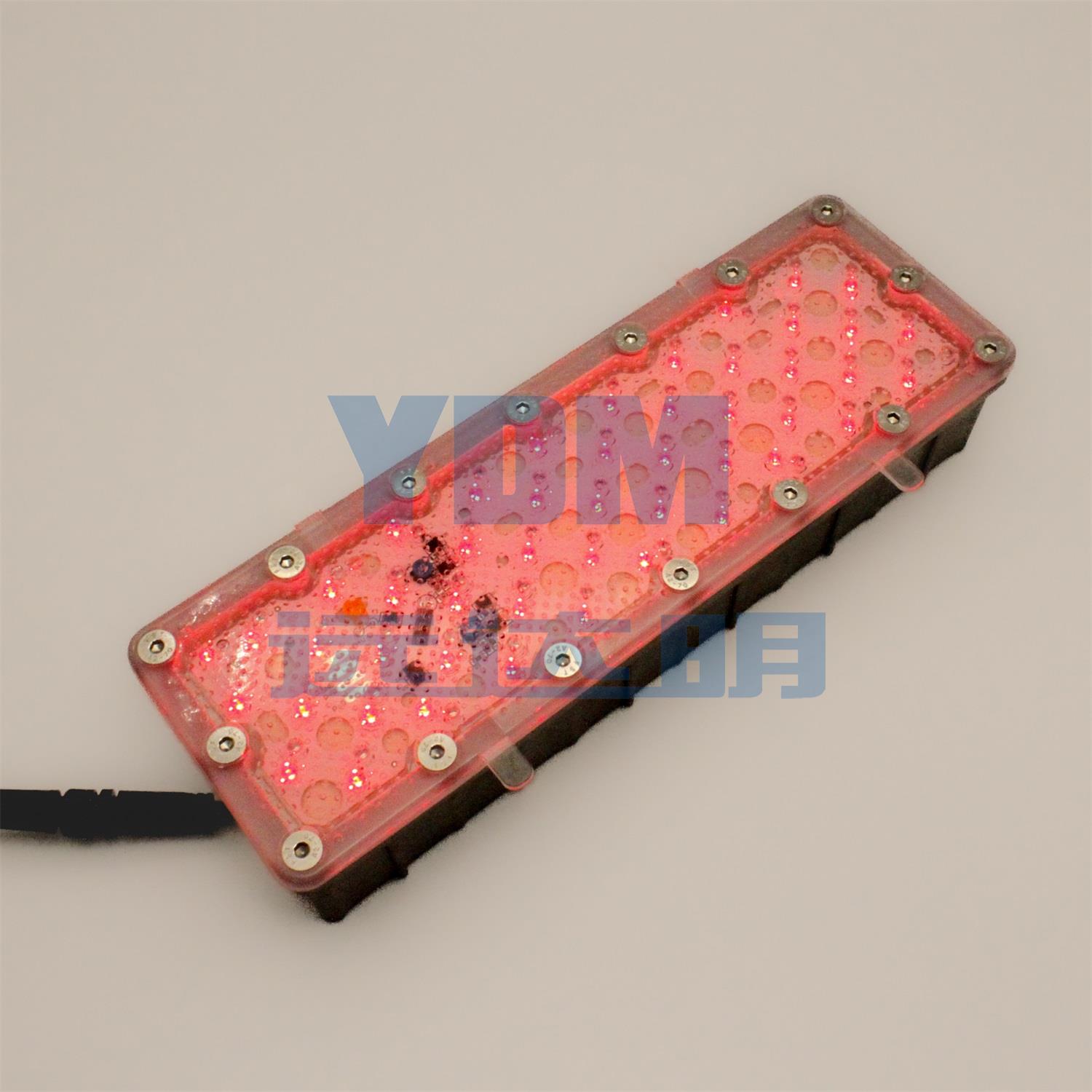

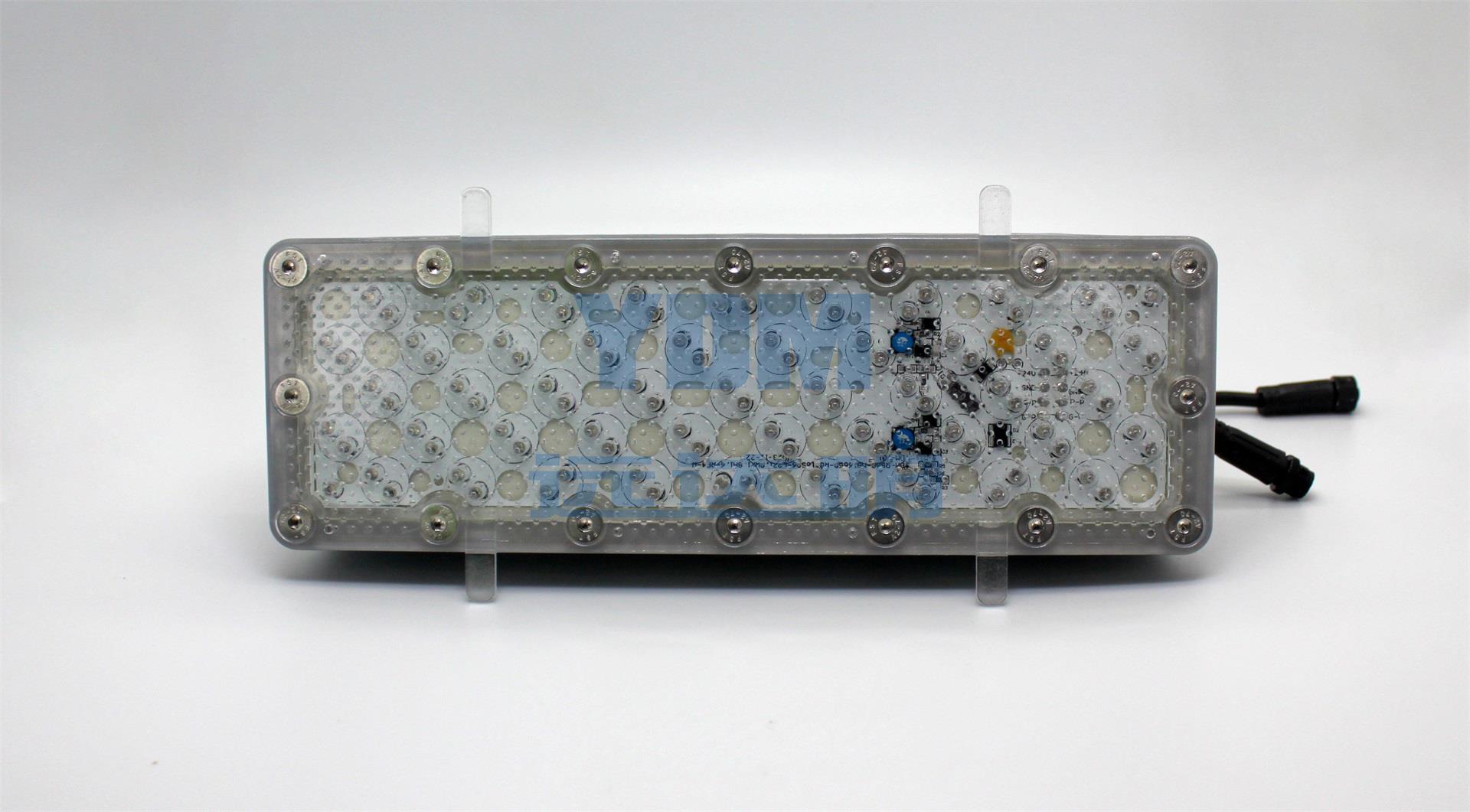

LED Illumination Brick
Item No.: IRSP-V-B96
Illumination brick is ‘safety line’ for pedestrian crossing. They can effectively remind pedestrians crossing the street (especially the elderly, children and heads-down tribe) to pay attention to traffic signals and reduce accidents, especially in bad weather, such as, at night, rainy days and smog days.
Illumination brick is ‘safety line’ for pedestrian crossing. They can effectively remind pedestrians crossing the street (especially the elderly, children and heads-down tribe) to pay attention to traffic signals and reduce accidents, especially in bad weather, such as, at night, rainy days and smog days.
-
-
Size300×100×60mm
-
Net Weight2.5kg
-
MaterialAluminum base+Bulletproof PC (top)+Epoxy filler
-
ColorRed/Green/Yellow/White
-
Compression resistanceover 50 tons
-
Working temperature-40℃～ +80℃
-
Permissible Operating VoltageDC 24V
-
LED Working ModeSteady or Flash
-
Ingress ProtectionIP68
-
Power Consumption3W
-
-
Item No.: IRSP-V-B96
- Bottom is made of high-strength aluminum with die-casting technology. Top is made of bulletproof PC material. Silicone sealing ring is used. The interior is made of high-insulating epoxy injection. With a pressure resistance of 50 tons.
- At traffic light-controlled intersection, the luminous color is synchronized with the traffic light signal; at no-traffic light-controlled intersection, it usually flashes alternately at low frequency.
- Protection grade: IP68.
- Anti-glare function to prevent any impact on pedestrian’s vision.
- Anti-slip properties. The surface of the product top is designed with small anti-slip dots. Significant anti-slip effect.
- DC24V input. Safe and durable.
- Connection method: connected with waterproof connector.
- High and low temperature: 0℃--65℃,150 hours.
Dimension
LED Illumination Brick Installation Diagram
-
Item No.: IRSP-V-B96
