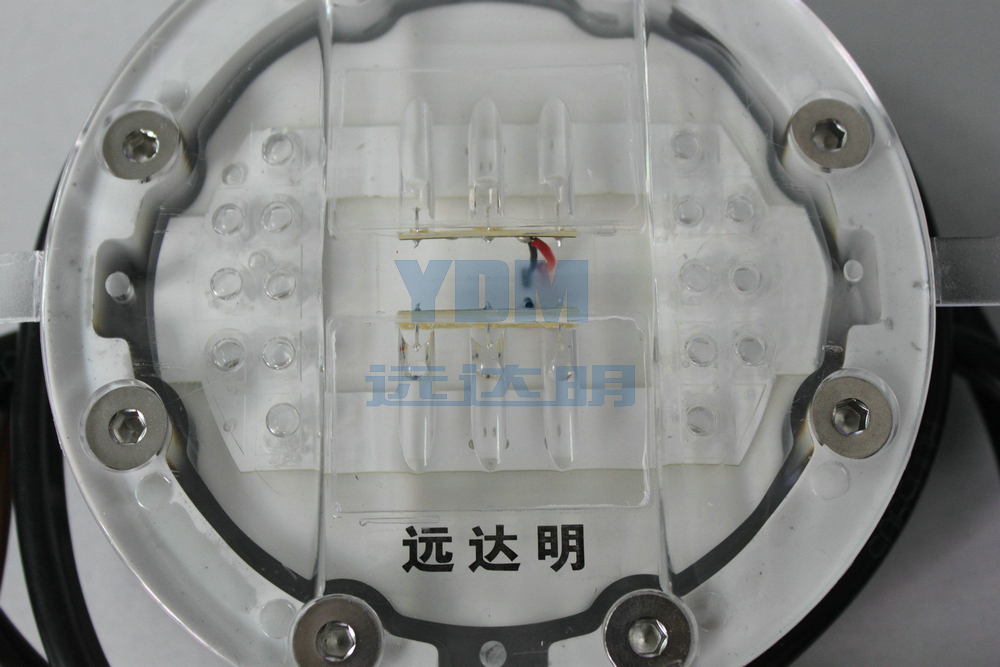

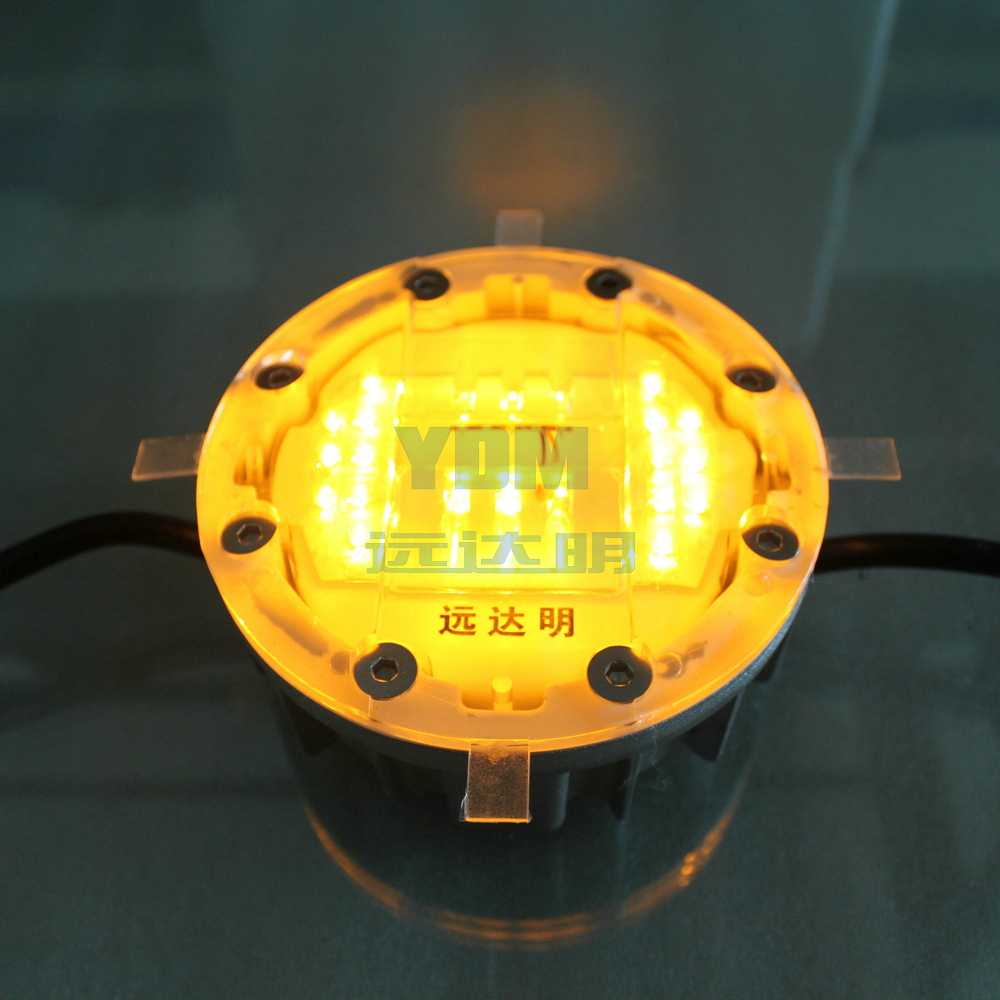

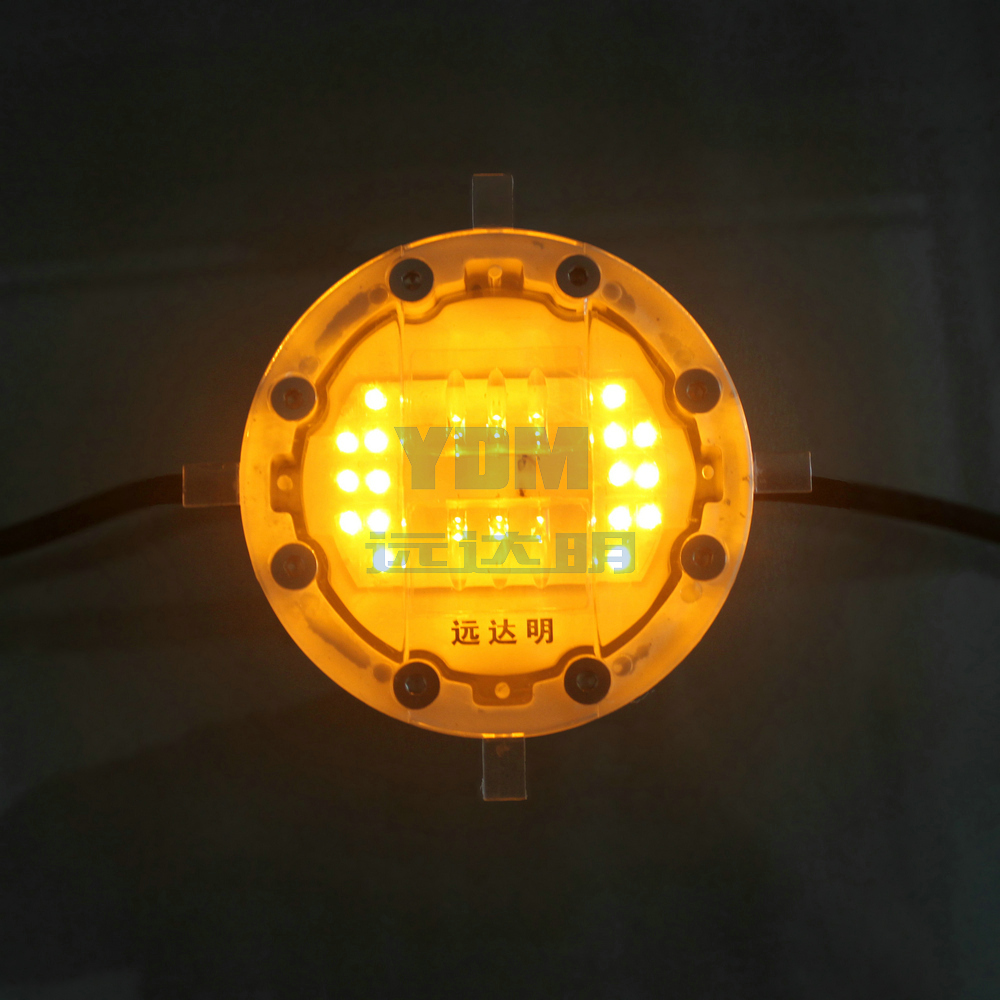

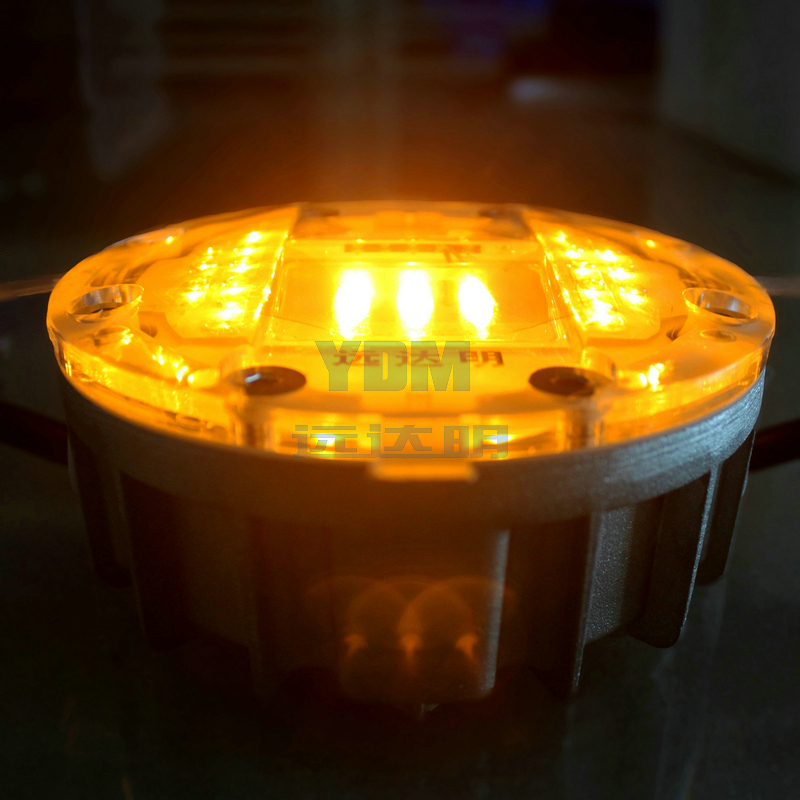

Wired Embedded Road Stud

Key Features:
Wired active flush-mounted guidance systems and remind the drivers to pay much attention to pedestrians;
Height above the road level less than 6.5 mm;
snow plow-proof, over 40 tons compression resistance;
Control Unit: controlling and monitoring of various functions of the light-emitting modules;
Low maintenance, reliable, robust, durable;
Suitable for machine cleaning.
    • Size
      φ126*56.5mm
    • Net Weight
      1.02kg
    • Material
      Aluminum alloy shell+ Polycarbonate+ Epoxy Salt-water resistant aluminum

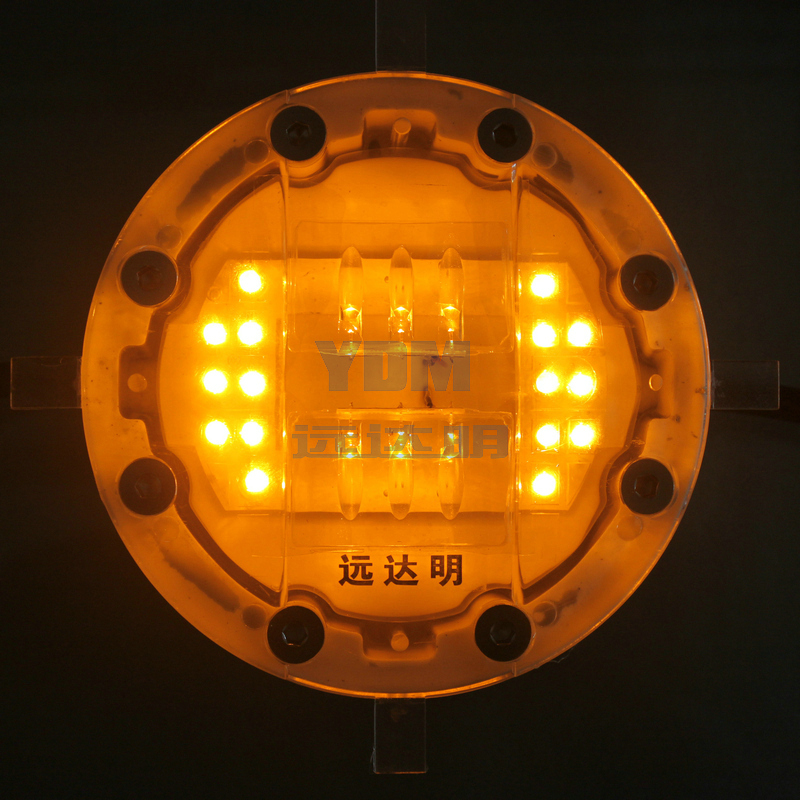

    • LED
      φ5mm, 2sides 6led+Top 16led or customized
    • LED Working Mode
      Steady or Flash (controller)
    • Luminous intensity
      5000mcd
    • View distance
      over 500m
    • Color
      Red/Yellow/Green
    • Compression resistance
      over 40 tons
    • Working temperature
      -20℃～+70℃
    • Ingress Protection
      IP68

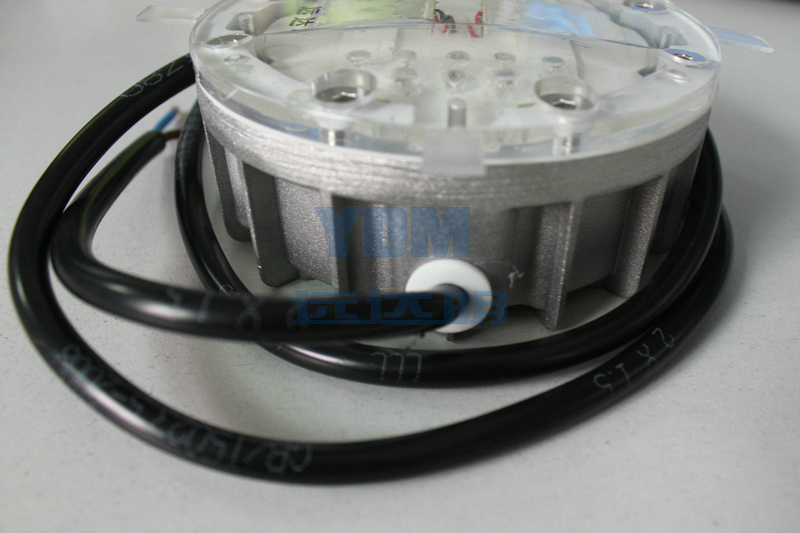

    • Cable
      2 x 1.5 MM² VVR；3 x 1.0 MM² VVR；4 x 0.75 MM² VVR
    • Warranty
      One year
    • Control unit Size
      260x205x90mm
    • Control unit Material
      Aluminum alloy
    • Control Input Voltage
      220 V AC 50 Hz
    • Control Input Interface
      5 V  TTL
    • Control Output Voltage
      24V 2.5A
    • Max Output Power
      50W, One unit can control 30pcs studs
    • Power Cable
      2.5 MM² VVR

  • Installation:
    1.Preparation. Wear correct personal protection equipment and lay the work zone safety equipment properly.
    2.Confirm the installation position. Make sure the road surface is flat.
    3.Clean the road surface and make sure the road surface is dry.
    4.Drill a hole with a diameter127mm depth60mm with the core drill.
    5.Use air pick to remove the bitumen inside the hole. Remove all debris in the hole and make sure the bottom is flat.
    6.Wait till the hole is dry. Spread some epoxy glue all over the hole and insert the road stud.
    7.Make sure the LEDs face the direction of traffic.
    8.Press the road stud to make it firmly installed, leaving the four wings mounted on the road surface.
    9.Remove the split glue.
    10.Two hours after the installation, go and check all solar road studs to make sure they are installed in right direction and horizontal to the road surface.
    11.Take away the work zone safety equipment after two hours.
    Application:
    • Pedestrians crossing, road delineation
    • Accident black-spots / cluster sites
    • Hazardous road layouts
    • Areas adversely affected by poor visibility
    • Cycle path
    • Car parks
    • Before speed hump
    Carton:
    62*34.5*16.5cm GW:1110g/pc NW: 1020g/pc 20pcs/carton

  • Key Features:
    Wired active flush-mounted guidance systems and remind the drivers to pay much attention to pedestrians;
    Height above the road level less than 6.5 mm;
    snow plow-proof, over 40 tons compression resistance;
    Control Unit: controlling and monitoring of various functions of the light-emitting modules;
    Low maintenance, reliable, robust, durable;
    Suitable for machine cleaning.
