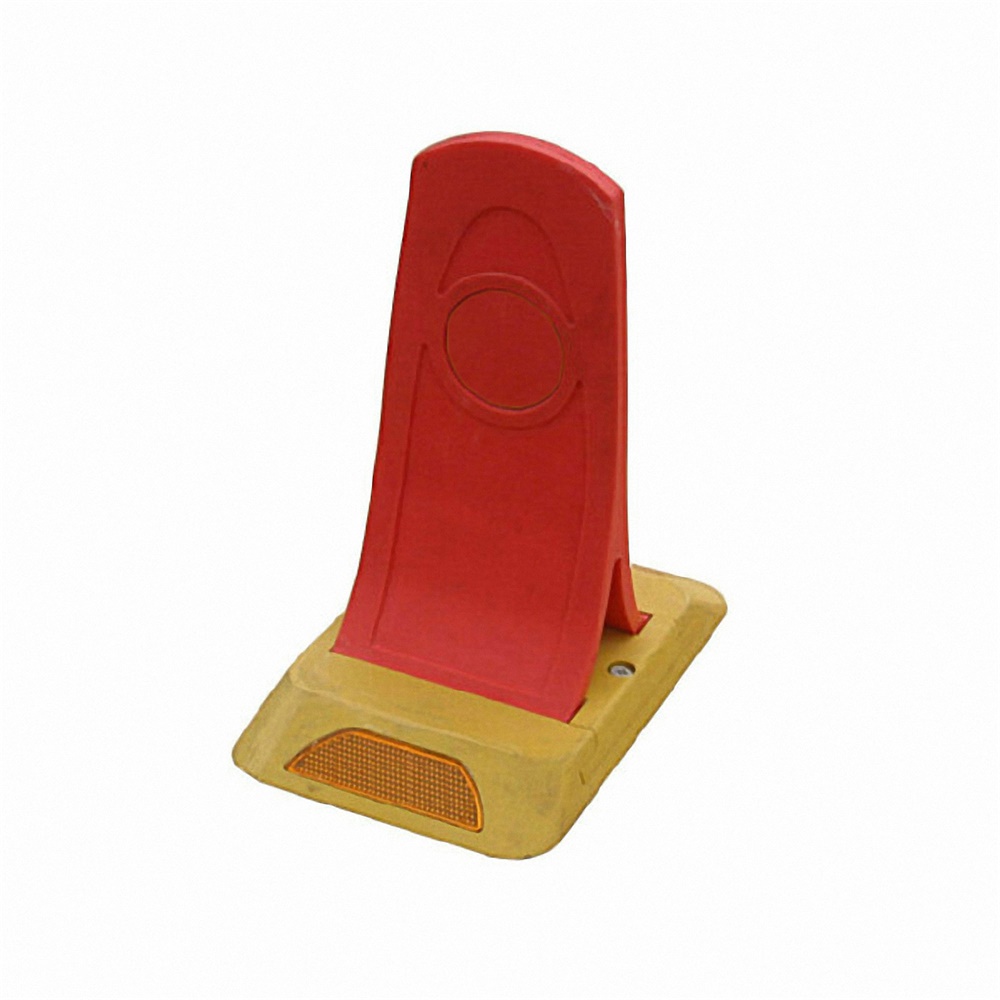

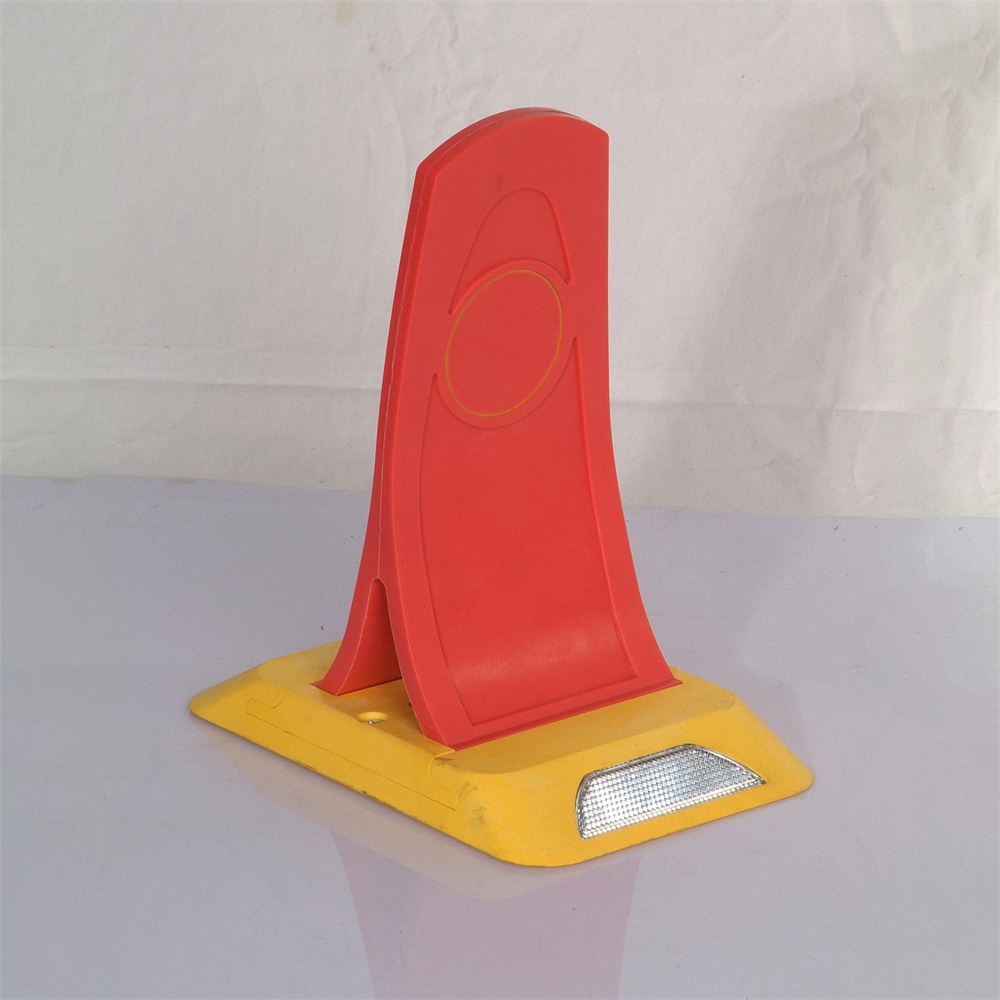

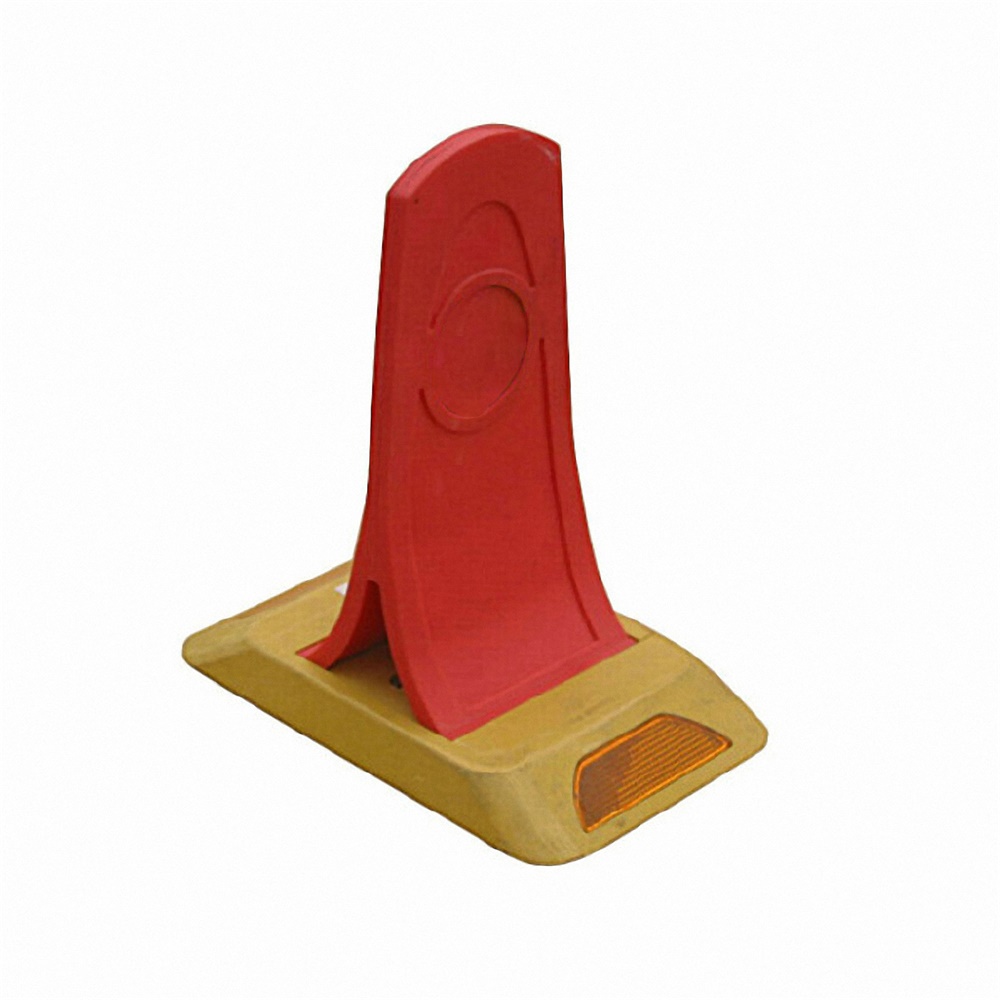

Cycle Lane Divider
Item No.:RSPD-2
Key Features:
Combination of horizontal road stud and vertical marker.
Vertical marker made of 2 pcs robust moulded TPU marker.
Horizontal road stud made of strong fiberglass reinforced plastic.
Traversable
Key Features:
Combination of horizontal road stud and vertical marker.
Vertical marker made of 2 pcs robust moulded TPU marker.
Horizontal road stud made of strong fiberglass reinforced plastic.
Traversable
-
-
Size250x158x280mm
-
Other SizeFlag size:245x115x12mm Base size:250x158x25mm
-
Net Weight1.4kg
-
MaterialTPU Flag + FRP base
-
Flag MaterialNoveon TPU with high flexibility
-
Reflective lensglass-faced acrylic lens
-
ColorRed/Yellow/White
-
View distanceover 100m
-
Compression resistanceover 16 tons
-
Ingress ProtectionIP68
-
Life Span＞ 3 years
-
WarrantyOne year
-
-
YDM Model RSPD-2 Lens Standard (mcd/lux) :
Obs Angle
Hor. Entr. Angle
White
Yellow
Red
0.2°
0°
600
500
300
0.2°
20°
300
250
160
Note: YDM Model RSPD-2 Lens according to ASTM Standard
Application:

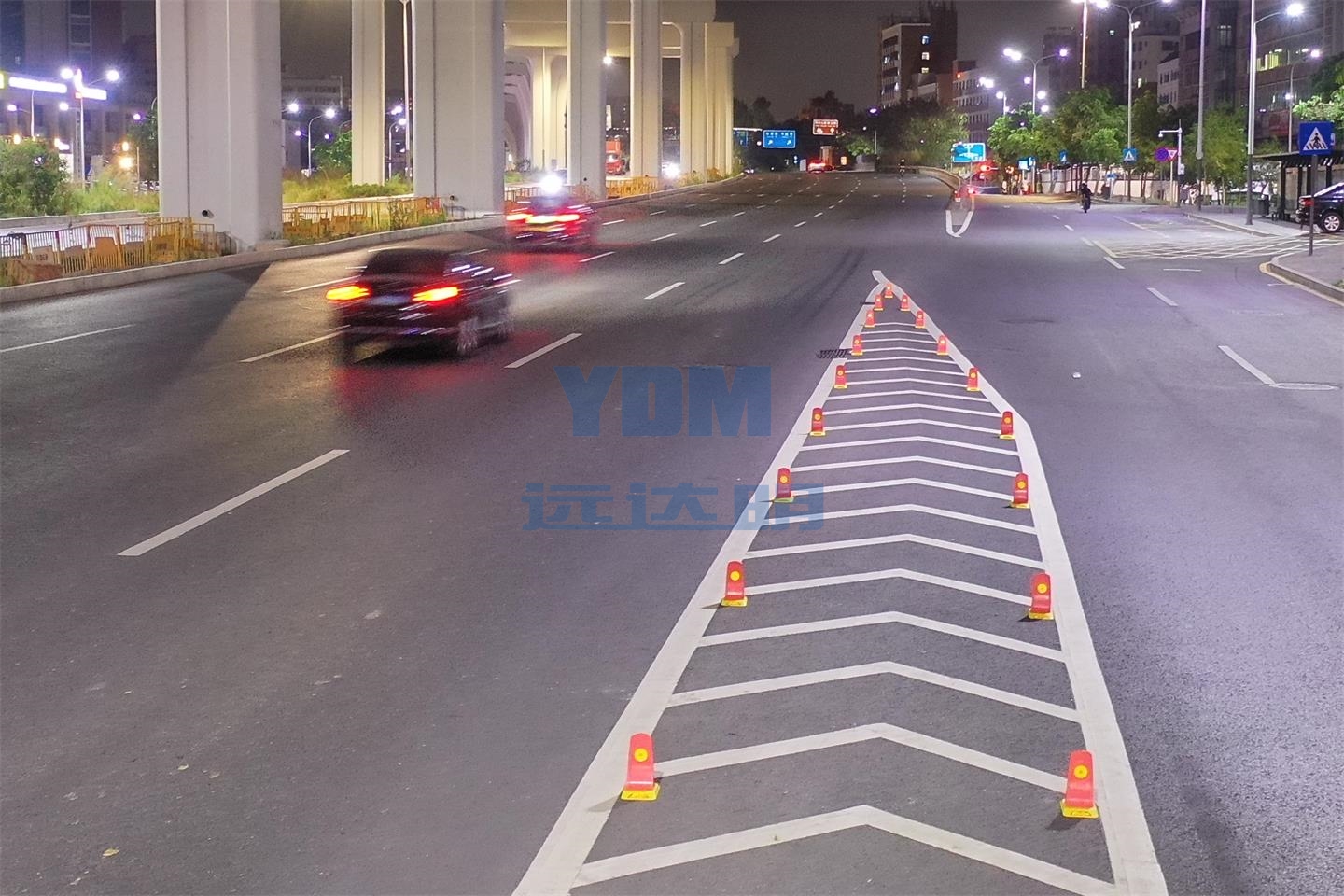

permanent and temporary use as a road separation,
lane divider or edge lane marker.
Surface preparation: Surface should be dry and clean of dust and debris.
Sweep away with a hand broom any loose materials.
Adhensive glue: bitumen pad, bitumen adhesive or epoxy.
Carton:
90*40*32cm GW:1520g/pc NW: 1400g/pc 20pcs/carton
-
